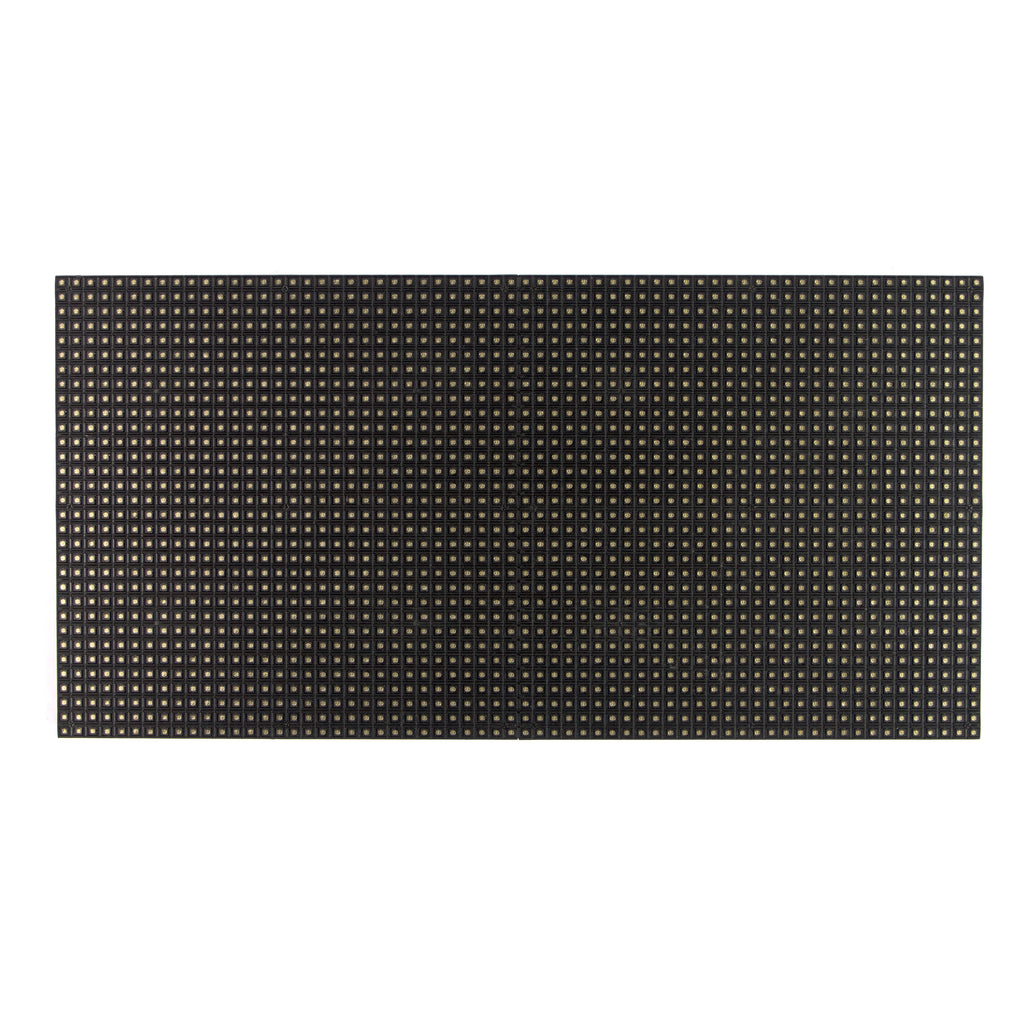

RGB LED Matrix Panel

Bring a little bit of Times Square into your home with these sweet RGB LED matrix panels.

These HUB75 style panels are normally used to make video walls, you can sometimes see them on the sides of buses and bus stops displaying animations or short video clips. They have bright RGB LEDs arranged in a 32x32, 32x64 or 64x64 grid on the front. On the back there is a PCB with a set of dual IDC connectors (one input, one output) and 12 16-bit latches that allow you to drive the display with a 1:16 scan rate.

These panels require 13 digital pins (6 bit data, 7 bit control) and a good 5V supply, up to 4A per panel). They are 'chainable' if you connect one output to the next input - you will need a microcontroller with a suitably high speed processor and enough RAM plus a software library that supports this.

These displays are designed to be driven by FPGAs or other high speed processors: they do not have built in PWM control of any kind. Instead, you're supposed to redraw the screen over and over to 'manually' PWM the whole thing. On a 16 MHz Arduino, it's possible to squeeze 12-bit color (4096 colors) with 40% CPU usage but they will do best powered by an FPGA or other high speed multi-core controller (like a recent Raspberry Pi or Feather). They are pre-white balanced with nice uniformity so if you turn on all the LEDs it's not a particularly tinted white.

Here are some nice, tidy ways to connect up and drive your LED matrices:

...scroll down for tutorial links!

Includes

  • LED panel
  • Power cable (with fork connectors suitable for connecting to a screw terminal)
  • IDC data cable
  • Four magnetic feet with screw threads

Specifications

  COM-B006 COM-B007 COM-B013 COM-B014
Dimensions (mm, L x W x H) 192 x 192 x 12.5 128 x 128 x 14 256 x 128 x 14.5 160 x 160 x 15
Panel resolution 32 x 32 (1024 dots) 32 x 32 (1024 dots) 64 x 32 (2048 dots) 64 x 64 (4096 dots)
Physical LED pitch (mm) 6 4 4 2.5
Physical density (dots/m²) 27556 62500 62500 160000
Panel weight (kg) 0.24 0.13 0.23 0.24
Viewing angle (horizontal) 160° 160° 160° 160°
Viewing angle (vertical) 160° 160° 160° 160°
Maximum power (w) ≤12 ≤20 ≤20 ≤18
Luminance (cd/m) ≥1300 ≥1000 ≥1000
≥1000
Photos of backs of panels link link link link
  • 5V regulated power input, 4A max (all LEDs on)
  • 5V data logic level input
  • Displays are 'chainable' - connect one output to the next input.

Resources

Check out these tutorials for instructions, schematics, wiring diagrams and code examples!

For 64x64 displays: You must solder bridge the E jumper on the back of the Adafruit Matrix Bonnet to 8, otherwise only half of your 64x64 display will light up.
