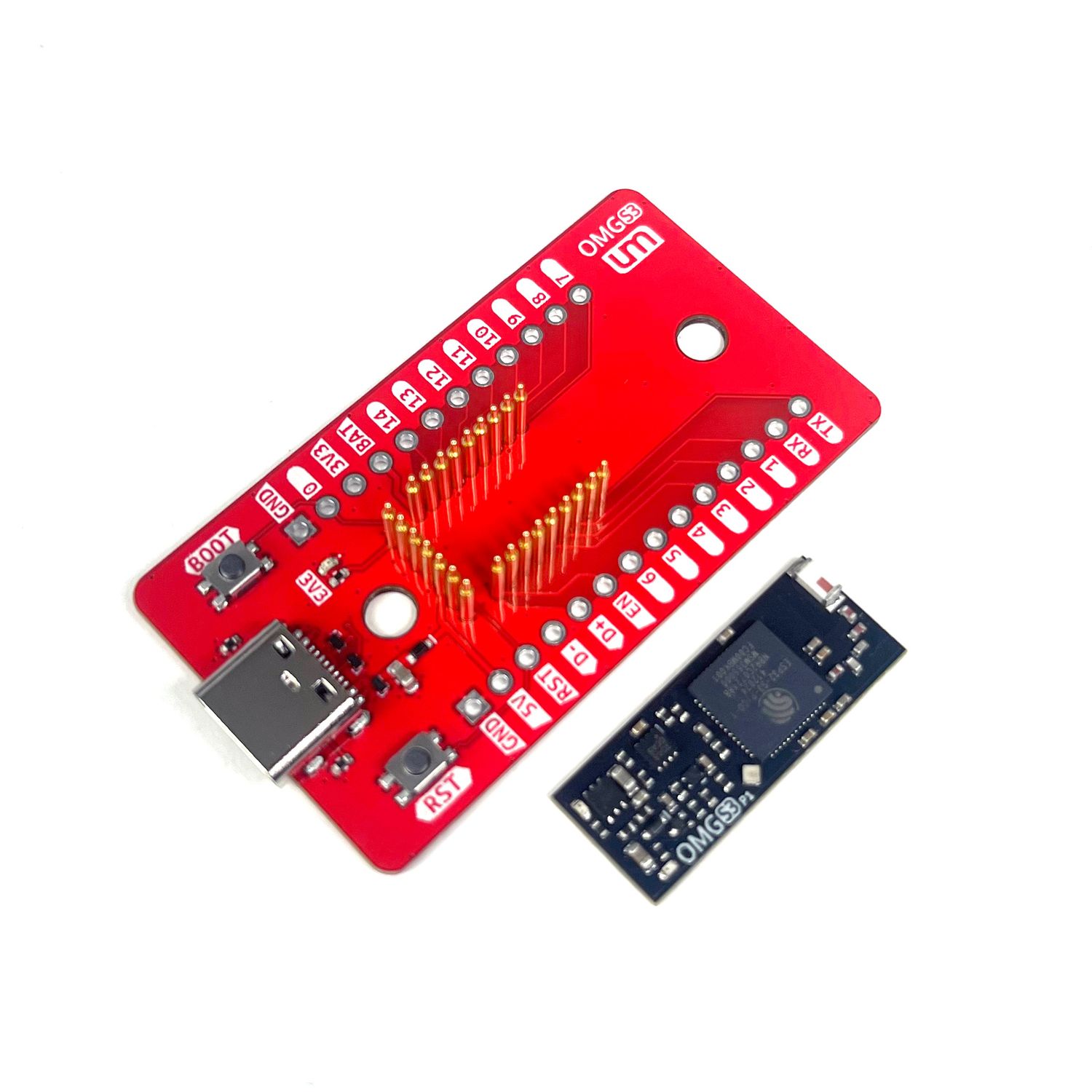

Pogo Yo! is a USB-C Pogo-Pin programming adapter for the OMGS3, designed to allow you to flash and develop using an OMGS3 board without requiring any soldering.
Pogo Yo! comes pre-assembled (including the pogo pins), excluding the 2.54mm header pins that can be used for external I/O connections.
Pogo Yo! does not ship with an OMGS3. The board shown in the images is for illustrative purposes only.
Features & Specifications
- USB-C + ESD Protection
- 1.27mm pogo pins
- 2.54mm headers exposing all OMGS3 pads
- Reset & Boot (IO0) buttons
- 3V3 Input Power LED

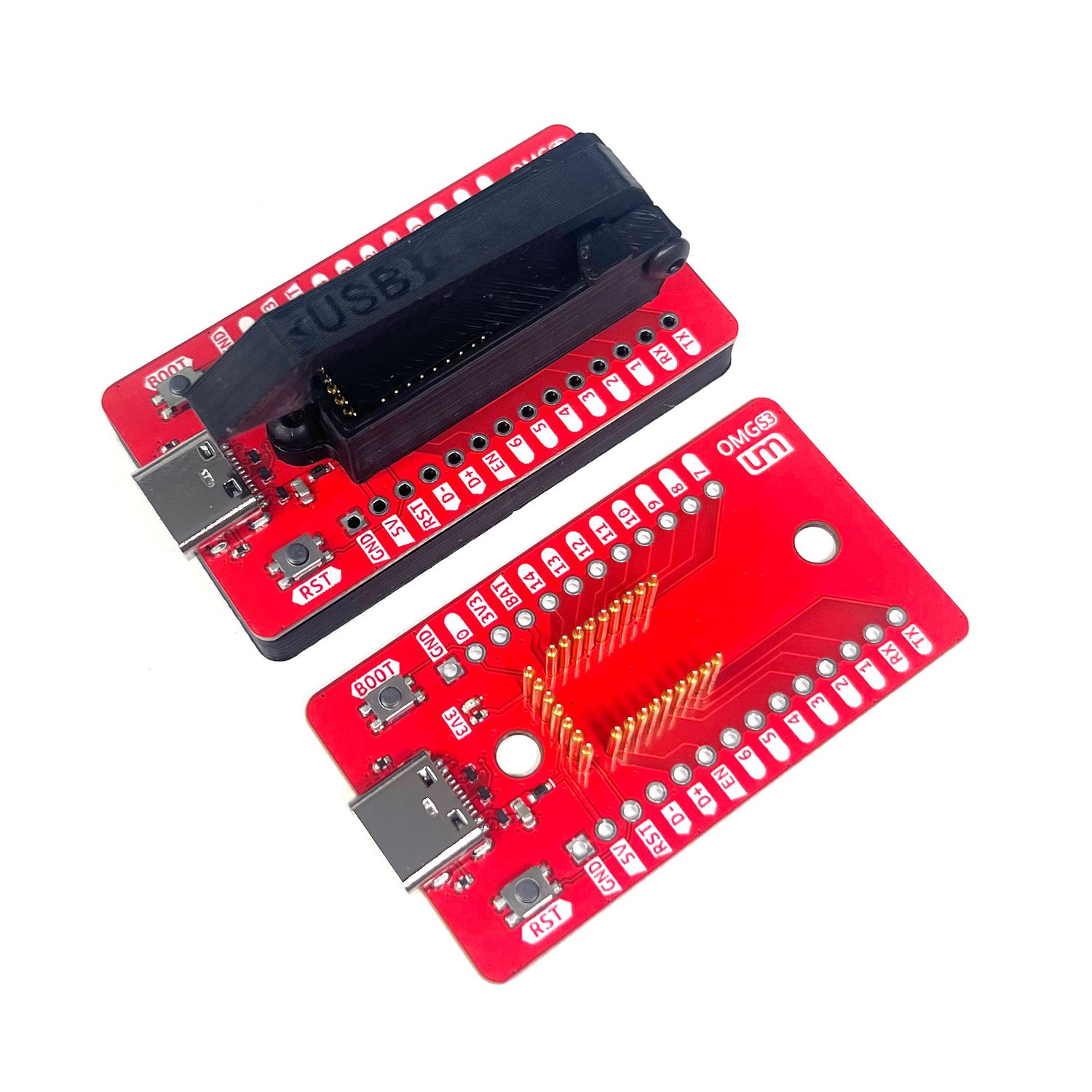

- 3D printed lever clamp
Why does it have a 3V3 header pin and LED?
This allows you to see the 3V3 regulator on the OMGS3 boards is getting power and working correctly. If you are planning to use your Pogo Yo! for prototyping on your OMGS3, you can connect external peripherals to the 3V3 header pin.
What does the Pogo Yo! ship with?
Each Pogo Yo! comes pre-assembled with the pogo-pins pre-soldered. It also ships with male 2.54mm pitch headers and an extra 3D printed lever in case the assembled one wears out.
