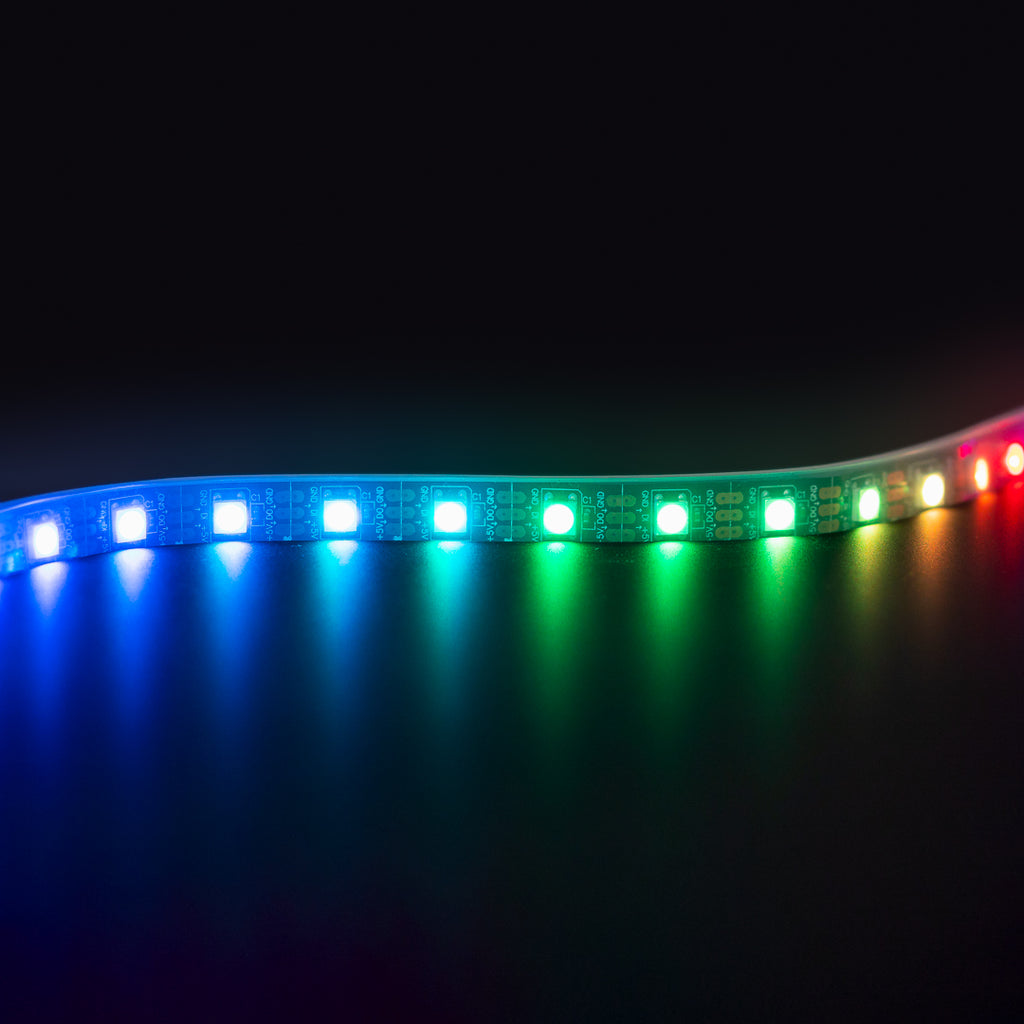

Flexible RGB LED Strip (aka NeoPixel, WS2812, SK6812)

These individually-addressable RGB LED strips are great for all sorts of uses: custom desk lighting, music or data visualisation (an LED thermometer?), or art installations. They come in three different pixel-spacings.

Addressable LEDs, like these NeoPixel-compatible ones, let you individually set each LED in the chain to a specific RGB colour. You can use a Raspberry Pi, Arduino, micro:bit, or other microcontroller to code them, and there are tonnes of different Python, MicroPython (or CircuitPython), Arduino, and more code libraries available.

These LED strips come in three different spacings—30 , 60, or 144 pixels per metre—and in it's sold in metre lengths, so if you order a quantity of 1 then you'll get 1 metre, a quantity of 2 is 2 metres, and so on...

The strips come with a flexible silicone waterproof sleeve, but this can be easily removed, if you like. If your metre length doesn't have a connector on one or other end, then you can use a little blob of hot glue or silicone sealant to seal the flexible sleeve.

Wiring

Please note!  Our 30 and 60 pixels per metre LED strips come on 5m reels. If you order less than 5m you'll get a partial reel - this means you're not guaranteed to get a connector on the data in end. We sell suitable connectors separately - check out the extras!

The 144 pixels per metre strips come ready-made in 1 metre lengths, so you'll always get a connector on both ends of those strips.

The wires are as follows:

  • Red: 5V
  • Green: data
  • White: ground

Dimensions

(W x H, with diffuser, approx)

  • COM3200 / 30 pixels per metre - 11.6mm x 3mm
  • COM3201 / 60 pixels per metre - 12mm x 3mm
  • COM3202 / 144 pixels per metre - 14mm x 3mm
