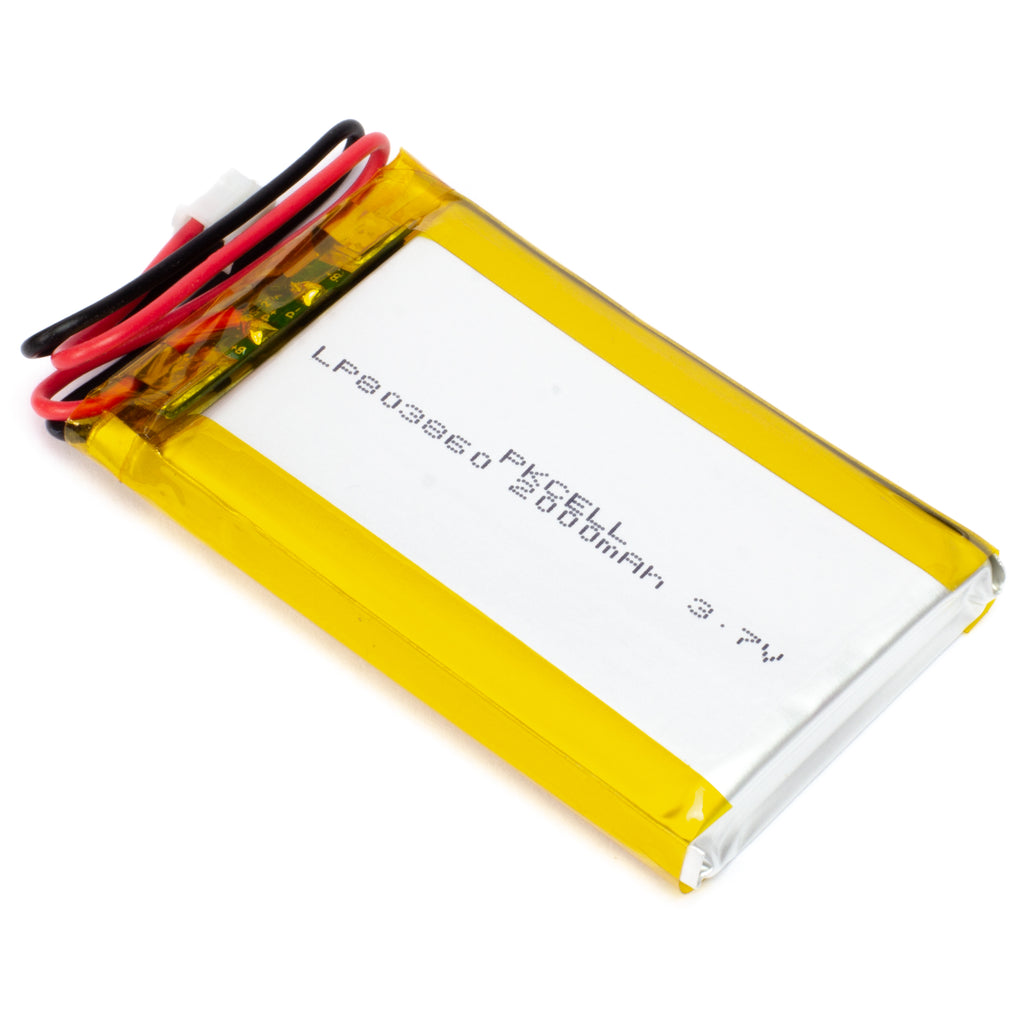

LiPo Battery Pack

Give your project some grunt with these high-density LiPo batteries! We have a range of LiPo battery packs ranging from 150mAh all the way up to 2000mAh. Read more...

  • Description
  • Reviews

Give your project some grunt with these high-density LiPo batteries! We have a range of LiPo battery packs ranging from 150mAh all the way up to 2000mAh.

The ultimate range of high-quality LiPo battery packs - pick whichever offers the best performance/size for your project. These little guys pack a huge amount of energy - we've tested each version to ensure the datasheet specs are accurate and the safety features kick in when needed.

Note: LiPo batteries must be treated with respect and charged/discharged within the parameters listed in the datasheet, you should never dent, bend, puncture, crush, or otherwise damage them. You should only consider these kinds of batteries for your projects if you've done your research and understand the risks.

All our batteries come with a 10cm lead terminated with a standard 2-pole JST connector. They also include protection circuitry to ensure that they are not over-discharged/charged and are protected from short-circuits but you should still take care when using them.

Features

  • 3.7V nominal voltage
  • 100mm JST terminated lead
  • Come 30% pre-charged for longer life storage
  • 4.2V charging cut-off and 2.4V emergency discharge cut-off
  • Short circuit protection

Approx Dimensions

150mAh 27 x 20.5 x 4.3mm
500mAh 37 x 30.5 x 5.3mm
1200mAh 64 x 35.5 x 5.3mm
2000mAh 60 x 42.5 x 8.3mm
3000mAh 80 x 50 x 6mm

You should avoid discharging these batteries beyond 3.0V - the emergency protection circuitry will kick in at 2.4V. If the battery bulges or is physically damaged it should be discarded. Do not charge unattended.

Datasheets: 150mAh500mAh1200mAh2000mAh, 3000mAh
