Pimoroni Yukon

by Pimoroni

A high-power modular robotics and engineering platform, built around RP2040 and designed to drive the most ambitious robots, props and devices.

The Do-Everything BoardĀ šŸ¦¾

Yukon is a standalone controller that can be equipped with up to six interchangeable modules capable of driving high-powered hardware - this is made possible by the unique pin capabilities of Raspberry Pi's multitalented RP2040 chip. This flexibility means you can drive many unique combinations of motors, servos, steppers, speakers, LED strips and more, all from a single Yukon host!*

To ensure Yukon creations are adventure proof, each module is screwed down to ensure a solid mechanical and electrical connection.

Assembling YukonĀ šŸš§

BigĀ electronic projects can often involveĀ a lot of soldering, splicing and other complicated assembly techniques, but not with Yukon! The host board and modules use solderless connectors wherever possible so it's fast and friction-free to get started, and simple to swap out components if you need to.

Powering YukonĀ āš”

Supplying external power to Yukon is easy thanks to its chunky XT30 connector, which enables you to attach 2 to 4 cell Lithium Polymer (LiPo) batteries (or any other source from 5V to 17V) to deliver up to 15A continuous for your high-power projects.

An e-Fuse with switchable output is included to protect from accidental overvoltage and overcurrent events, along with internal sensors for monitoring voltage, current, and temperature whilst your programs run.

Programming YukonĀ šŸ’¾

Yukon is supported by a comprehensive MicroPython library with a whopping 50 (!) examples showing how to use the individual features of the board and all of its modules. There are also fully fledged showcase examples to show you how Yukon can be used to build a remote-controlled rover, spider tank, and pen plotter.

    Features

    • Powered by RP2040 (Dual Arm Cortex M0+ running at up to 133MHz with 264kB of SRAM)
    • 16MB of QSPI flash supporting XiP
    • 6 x slots for high power modules
    • E-Fuse with switchable output (40A overcurrent and 18V overvoltage protection)
    • XT30 connector for V+ and logic power (5 to 17V, 15A continuous)
    • USB-C for programming and logic power
    • Power on-off button
    • 3 x user buttons (one of which also acts as BOOTSEL for entering DFU mode)
    • 2 x power and 2 x user LEDs
    • 2 x Qw/ST connectors for attaching breakouts
    • Internal voltage in, voltage out, current, and temperature sensors
    • Unpopulated header for attaching Breakout Garden boards
    • Unpopulated expansion headers for wiring up external buttons and extra IO
    • Fully assembled
    • No soldering required (unless you want to use the Breakout Garden or expansion headers).
    • M2 screws for attaching modules
    • Rubber feet šŸ¾
    • MicroPython firmware and library
    • Yukon modules and other components are sold separately.

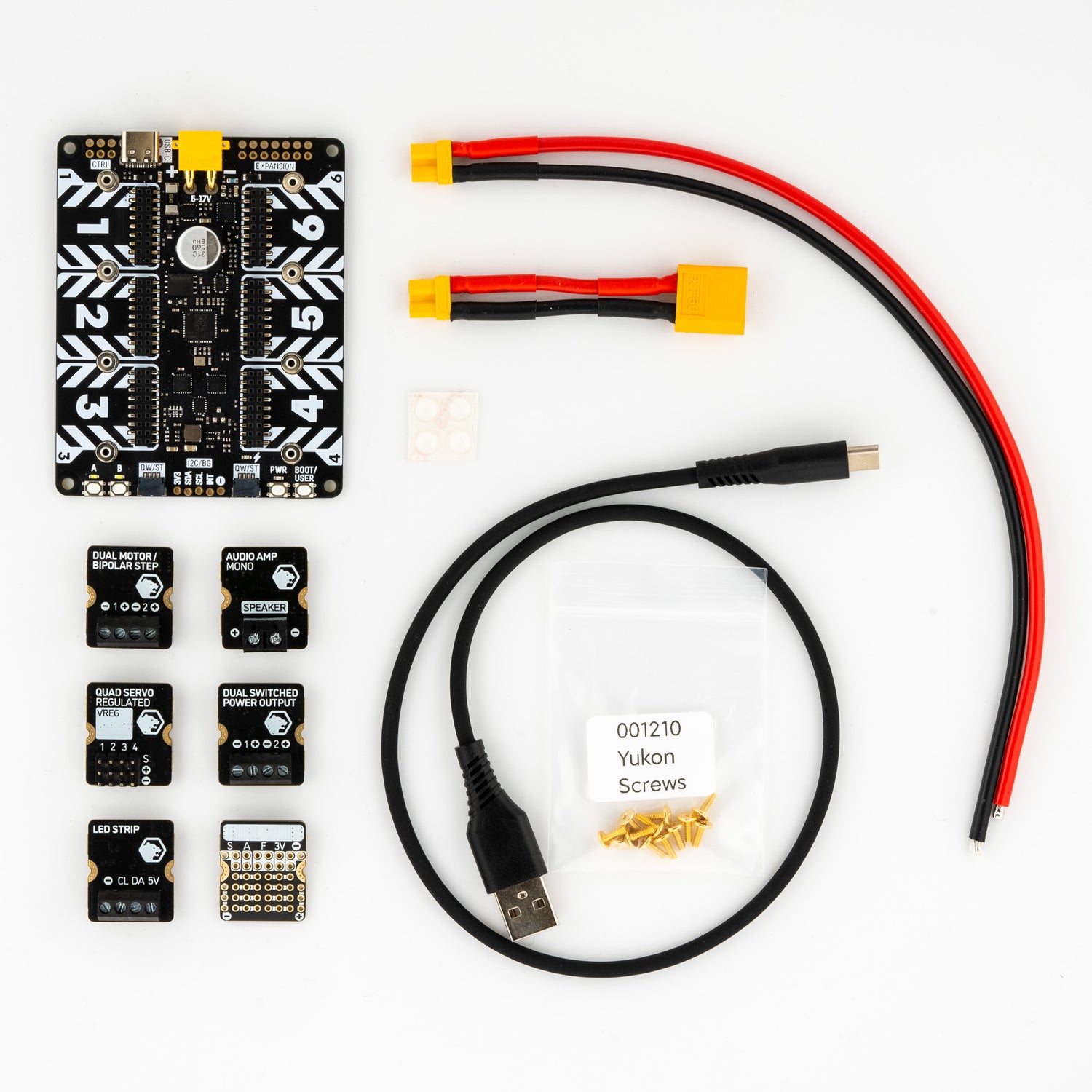

    Yukon Make Anything! Kit Includes

    You can buy a Yukon host (plus screws and feet) on its own, or as part of the fully-featured Yukon Make Anything! Kit, which sets you upĀ with all the tools to make a bunch of cool stuff. It includesĀ six different modules for driving a diverseĀ range of hardware, plusĀ a selection ofĀ useful cables for feeding your Yukon power and data.

    • Yukon Host (plus screws and feet)
    • Dual Motor / Bipolar Stepper Module
    • Quad Servo [Regulated] ModuleĀ
    • LED Strip Module
    • Audio Amp Module
    • Dual Switched Power Output Module
    • Proto Module
    • USB-A to USB-C cable for programming
    • Loose wire to XT30 cable for power
    • XT60 to XT30 cable for power
    • ...all packed up neatly in a reusable Pirate-brand Loot Box.

    Yukon Modules

    Customise Yukon to suit almost any project with our range of addon modules. You can populate your Yukon with a full load-out right away, or start with a few modules and expand as your project grows. There's also a proto module, for if youĀ want to add a customĀ module like a buzzer or a potentiometer.

    Motors

    Servos

    Output

    Audio

    Lighting

    Prototyping

    Pinout and Schematic

    Getting Started

    You can find Yukon documentation, code examples and MicroPython builds at the link below:

    If you'd like to program Yukon from an Android phone then you could try the DroidScript app, available on Google Play. Ā You'll need a USB-C cable and a recent version of MicroPython firmware installed on the board.

    Connecting Breakouts

    The Qw/ST connectors on Yukon make it super easy to connect up Qwiic or STEMMA QT breakouts. If your breakout has a QW/ST connector on board, you can plug it straight in with a JST-SH to JST-SH cable.

    Breakout Garden breakouts that don't have a Qw/ST connector can be connected using a JST-SH to JST-SH cable plus a Qw/ST to Breakout Garden adaptor. Want to use multiple Qw/ST breakouts at the same time? Try this adaptor!

    Notes

    • Measurements: 84mm x 67mm x 14mm (L x W x H). The mounting holes are M2.5 and 3mm in from each edge.
    • Yukon has some extra broken out headers that adventurous makers might find useful (note that these are unpopulated and so will require soldering):
      • Control header for connecting up external on-off and user/boot buttons, as well as an external power LED
      • Expansion header for connecting up external A and B user buttons, an LCD display (or use as GPIO), and SWD debugging
    • The board's current draw when off is 2.05mA @ 5V and 3.25mA @ 17V. As such it is recommended to disconnect any battery pack if the project is not going to be used for a while, to avoid unnecessary draining.
    • Yukon comes with kapton tape on top of its 8 mounting posts. Remove these before installing any modules.
    • * Some slot placement and combinations of modules may not be compatible due to shared pin functions

    About RP2040

    Raspberry Pi's RP2040 microcontroller is a dual core ARM Cortex M0+ running at up to 133Mhz. It bundles in 264kB of SRAM, 30 multifunction GPIO pins (including a four channel 12-bit ADC), a heap of standard peripherals (I2C, SPI, UART, PWM, clocks, etc), and USB support.

    One very exciting feature of RP2040 is the programmable IOs which allow you to execute custom programs that can manipulate GPIO pins and transfer data between peripherals - they can offload tasks that require high data transfer rates or precise timing that traditionally would have required a lot of heavy lifting from the CPU.
