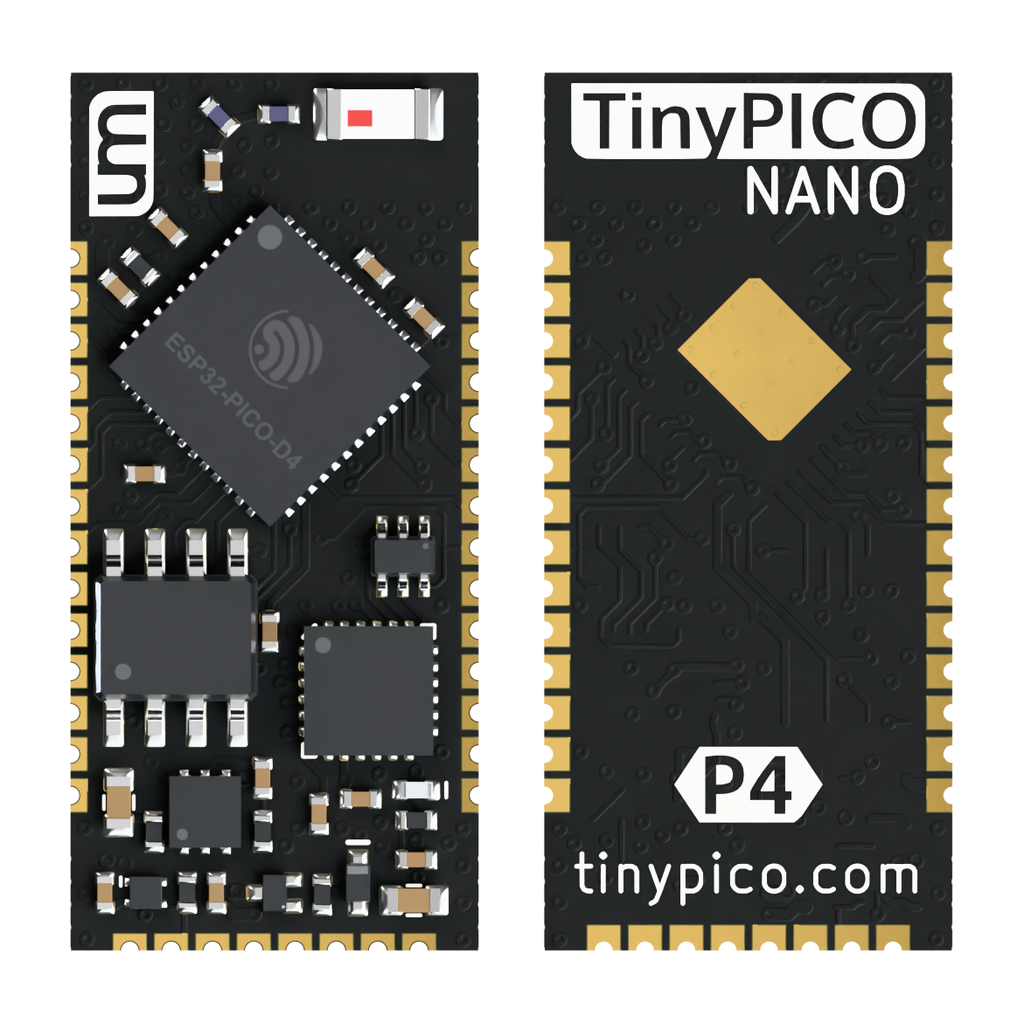

TinyPICO Nano is the world’s smallest, fully-featured ESP32 microcontroller module - just drop it on your PCB and focus on your features!
No compromises! The module packs a massive 700mA 3.3V regulator, on-board battery management, 4MB of extra PSRAM and 27 GPIO! TinyPICO Nano is tuned for ultra low current use, dropping below 20uA when in deep sleep.
Don’t be fooled by its size, TinyPICO Nano is a complete drop in microcontroller module - BYO USB connector!
TinyPICO Nano V4 is the same TinyPICO Nano as the original. The Ignion antennas used on earlier versions have been discontinued, so V4 now includes a new high gain 3D antenna and RF network.
Features & Specifications
| Processor | ESP32-PICO-D4 32-bit · Dual-core LX6 · up to 240 MHz |
|---|---|
| Flash | 4MB QSPI |
| PSRAM | 4MB QSPI |
| GPIO | 27 |
| Wireless | Wi-Fi 4 2.4 GHz · 802.11b/g/n Classic BT + BLE 4.2 |
| USB | USB-to-serial / UART programming |
| Power | 700 mA · 3.3 V regulator · enable pin for LDO on/off control |
| Battery | LiPo battery management · optimised power path for low-power battery use |
| Connection | VBAT pin for battery connection |
| Size | 27 × 13 mm |
| PCB | 1 mm thick, previously 0.8 mm |
Pinout
Board dimensions 27 × 13 mm
TinyPICO Nano now ships with a CH9102F Serial UART chip like the regular TinyPICO. Blue power LED indicates CH9102F.
Compare the modules.
| Find your next module. | EdgeS3[D] | OMGS3 | NanoS3 | TinyPICO Nano |
|---|---|---|---|---|
| MCU | ESP32-S3-PICO | ESP32-S3-PICO | ESP32-S3FN8 | ESP32-PICO-D4 |
| Processor | Dual-core LX7 · up to 240 MHz | Dual-core LX7 · up to 240 MHz | Dual-core LX7 · up to 240 MHz | Dual-core LX6 · up to 240 MHz |
| Flash | 8 MB | 8 MB | 8 MB | 4 MB |
| PSRAM | 2 MB | 2 MB | 8 MB | 4 MB |
| Available IO | 29 + 8 | 17 | 27 | 27 |
| 2.4 GHz Wi-Fi | Wi-Fi 4 | Wi-Fi 4 | Wi-Fi 4 | Wi-Fi 4 |
| Bluetooth | BLE 5 + Mesh | BLE 5 + Mesh | BLE 5 + Mesh | Classic BT + BLE 4.2 |
| Zigbee / Thread | — | — | — | — |
| Format / connection | M.2 B-Key module | Surface-mount module | Surface-mount module | Surface-mount module |
| USB | Via carrier · USB OTG / JTAG | Via carrier · USB OTG / Serial / JTAG | Via carrier · USB OTG / Serial / JTAG | Via carrier · USB-to-serial |
| 3.3 V regulators | 1 × 700 mA | 1 × 700 mA | 1 × 700 mA | 1 × 700 mA |
| STEMMA QT | — | — | — | — |
| RGB LED | — | NeoPixel | NeoPixel | — |
| Antenna | Onboard + u.FL · software switch | Onboard | Onboard | Onboard |
| Battery | I²C fuel gauge + LiPo charging | I²C fuel gauge + LiPo charging | LiPo charging | LiPo charging |
| Size | 22 × 23 mm | 25 × 10 mm | 28 × 12.7 mm | 27 × 13 mm |
Getting Started Using Your TinyPICO Nano
Please have a read through our Getting Started Guide for information on how to start using your TinyPICO Nano Development Board.
Code any way you like!
Ships with MicroPython pre-installed!
The TinyPICO Nano ships with MicroPython for the ESP32.
Of course, you can choose from a wonderful array of other languages and platforms. Explore them all below....
Downloads
Download TinyPICO Nano resources, including the schematic, 3D model, KiCAD footprint and more.

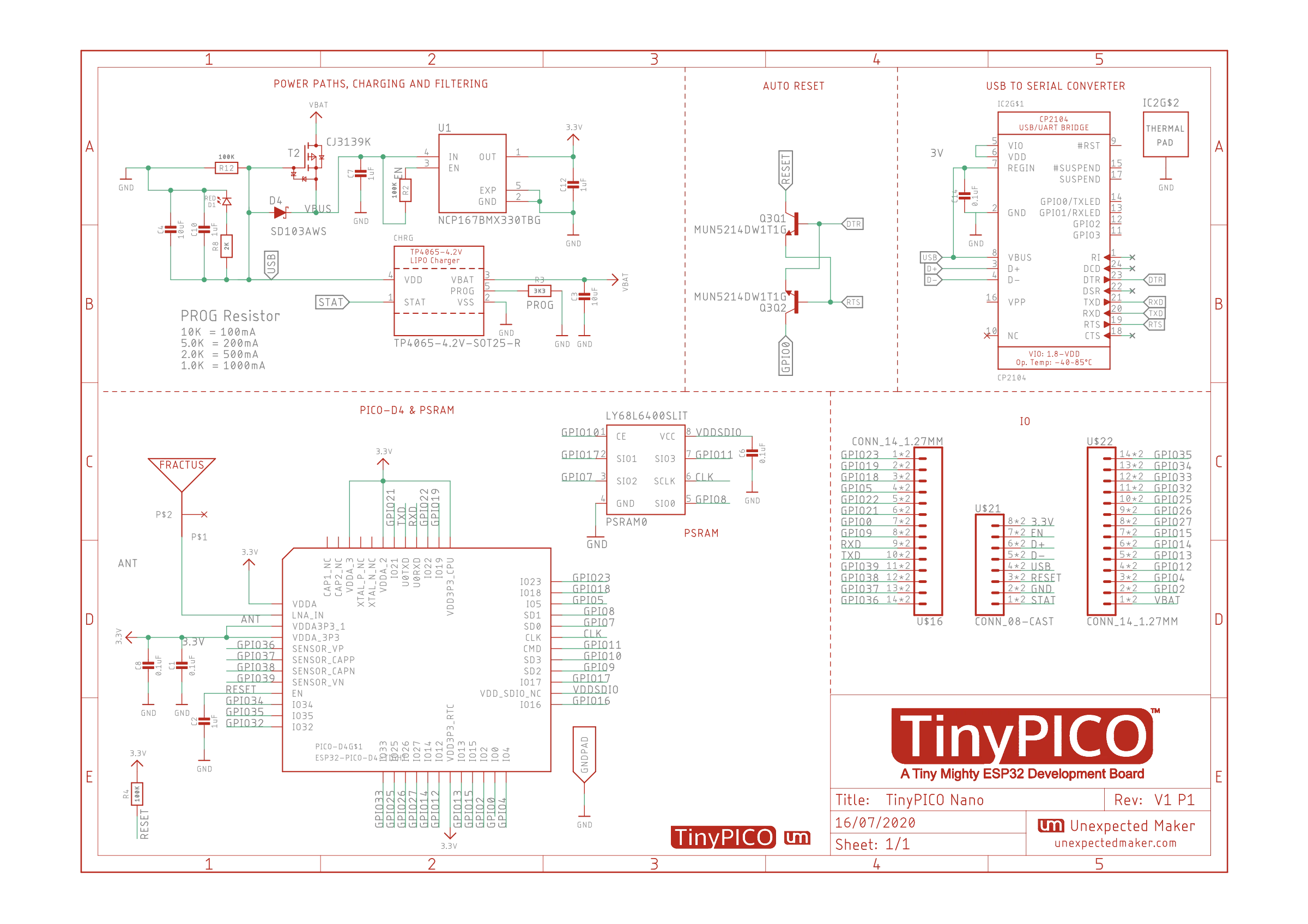

Schematic
GitHub
The TinyPICO hardware GitHub repository includes:
- 3D STEP and STL files for TinyPICO Nano
- Mechanical drawing
- KiCAD, Eagle, Altium and DipTrace footprints
ESP32-PICO-D4 datasheet
For detailed information about the ESP32-PICO-D4, including full IO capabilities and other functionality, refer to the datasheet from Espressif.
View ESP32-PICO-D4 datasheet →
Certification
TinyPICO Nano ships uncertified. If you use a TinyPICO Nano on a project that requires certification, you’ll be required to also certify the WiFi and Bluetooth radios.
