EdgeS3[D] is Unexpected Maker's brand new REUSABLE development board/module.
EdgeS3[D] uses an M.2 B-Key edge connector to allow you to insert and remove this module from a carrier PCB using an compatible M.2 B-Key socket. No more single use soldering of modules onto your boards while prototyping, which allows you to have less boards and move them between projects easily.
EdgeS3[D] also included is an onboard IO Expander with an additional 8x IO broken out to the connector, for those demanding applications that require just a few more IO..
EdgeS3[D] include everything you'd expect in a full featured board from Unexpected Maker - Onboard 3V3 regulator, battery charging and monitoring, excellent deep sleep and a finely tuned RF layout, it also has ESD protection for those of us that forget we are a walking static charge machine!

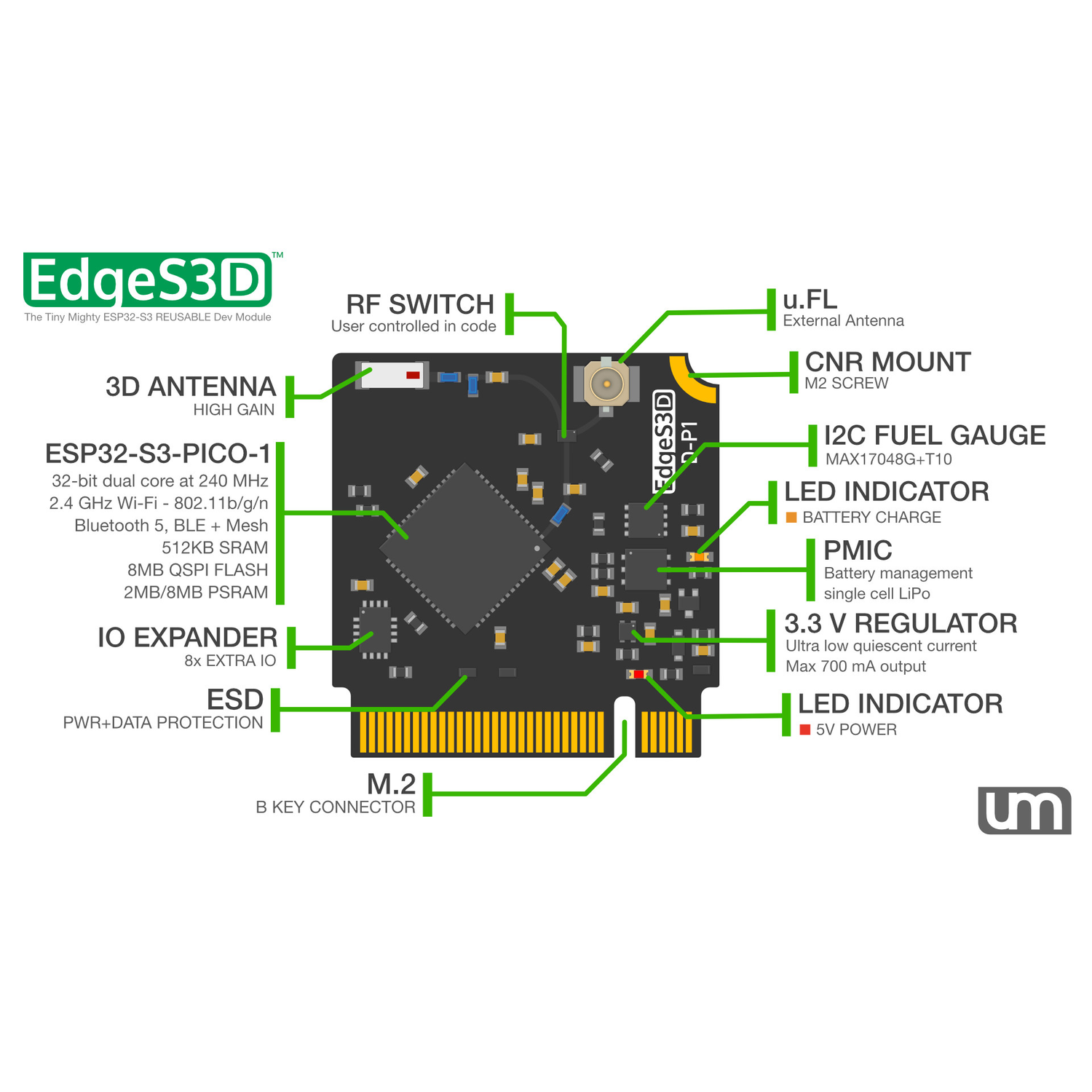

Features
- Dual 32bit Xtensa LX7 cores @ up to 240Mhz
- RISC-V Ultra Low Power Co-processor
- 2.4GHz Wifi - 802.11b/g/n
- Bluetooth LE 5 + Mesh
- 8MB QSPI Flash
- 2MB of extra QSPI PSRAM
- 700mA 3.3V LDO Regulator
- ULTRA LOW Deep Sleep Current
- Native USB + USB Serial JTAG
- LiPo Battery Charging
- NEW I2C Battery Fuel Gauge
- NEW 3D High Gain Antenna AND u.FL connector
- 29 + 8 GPIO via IO Expander
- M.2 B-Key Edge Connector
Note: EdgeS3[D] is not compatible with a M.2 slot in your computer. Please don't attempt to insert it "just to see".
NEW! Two antenna options on the one board!
EdgeS3[D] includes an onboard antenna and a u.FL connector for an external antenna on the same board, and you can switch which antenna to use via the RF switch on the fly from inside your code!
The onboard antenna is selected by default, so you never need to worry about the RF switch being in a bad state, or the ESP32-S3 getting damaged if you forget to plug in an external antenna.

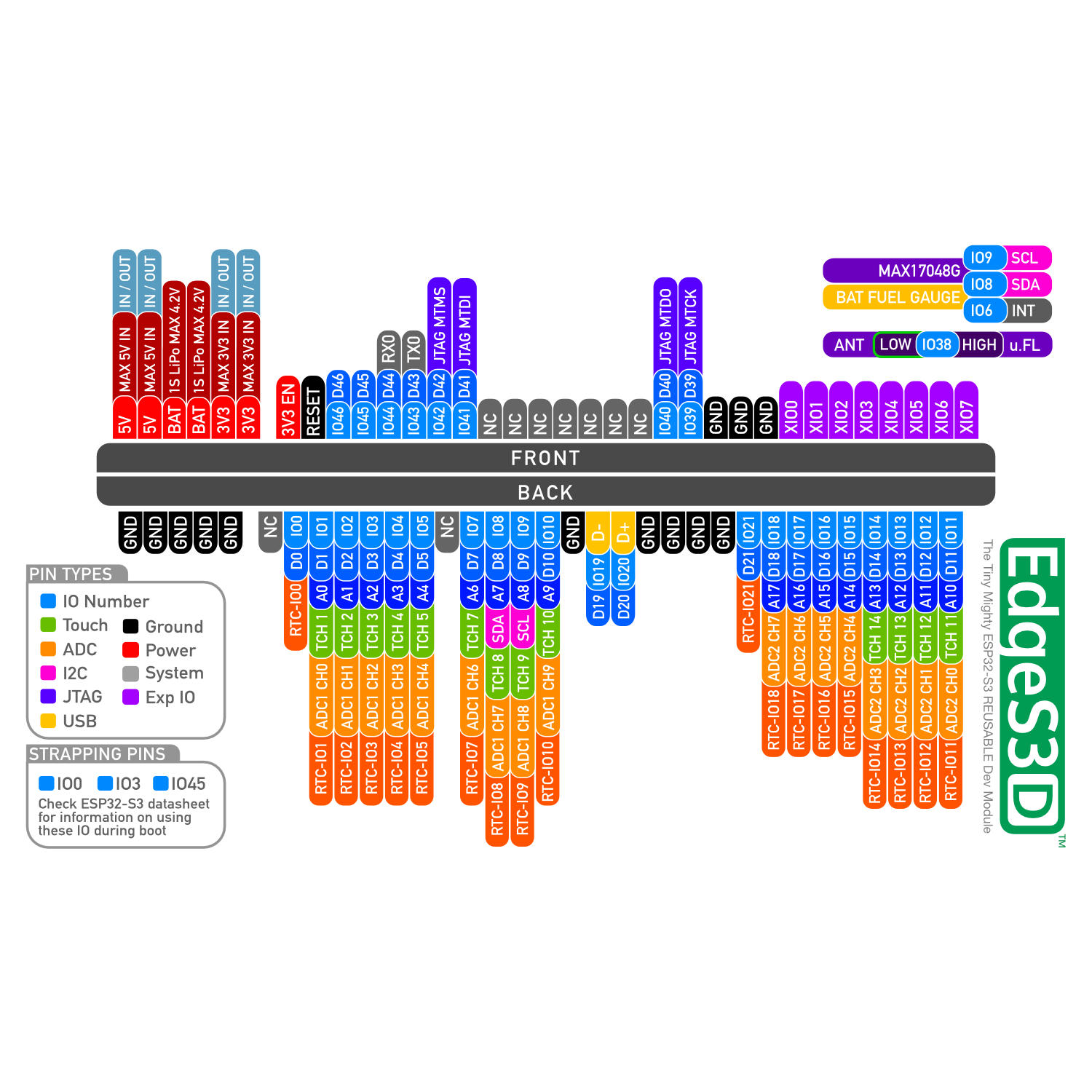

Pinout
-
Board Dimensions: 22mm x 23mm
-
Max Thickness: 2mm at u.FL connector
Platforms
Unexpected Maker ESP32-S3 boards ship with CircuitPython pre-installed!
Please check out the new PLATFORMS area of the Getting Started guide to find out all about developing for your new board in a range of different languages.
Resources
Check out the EdgeS3[D] page for schematics, dimensions, 3D models and more!
