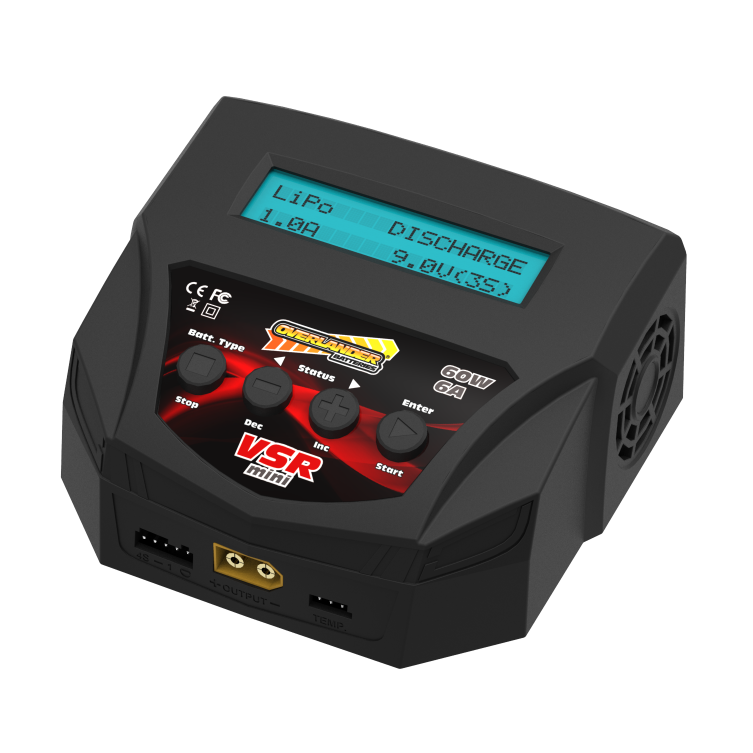

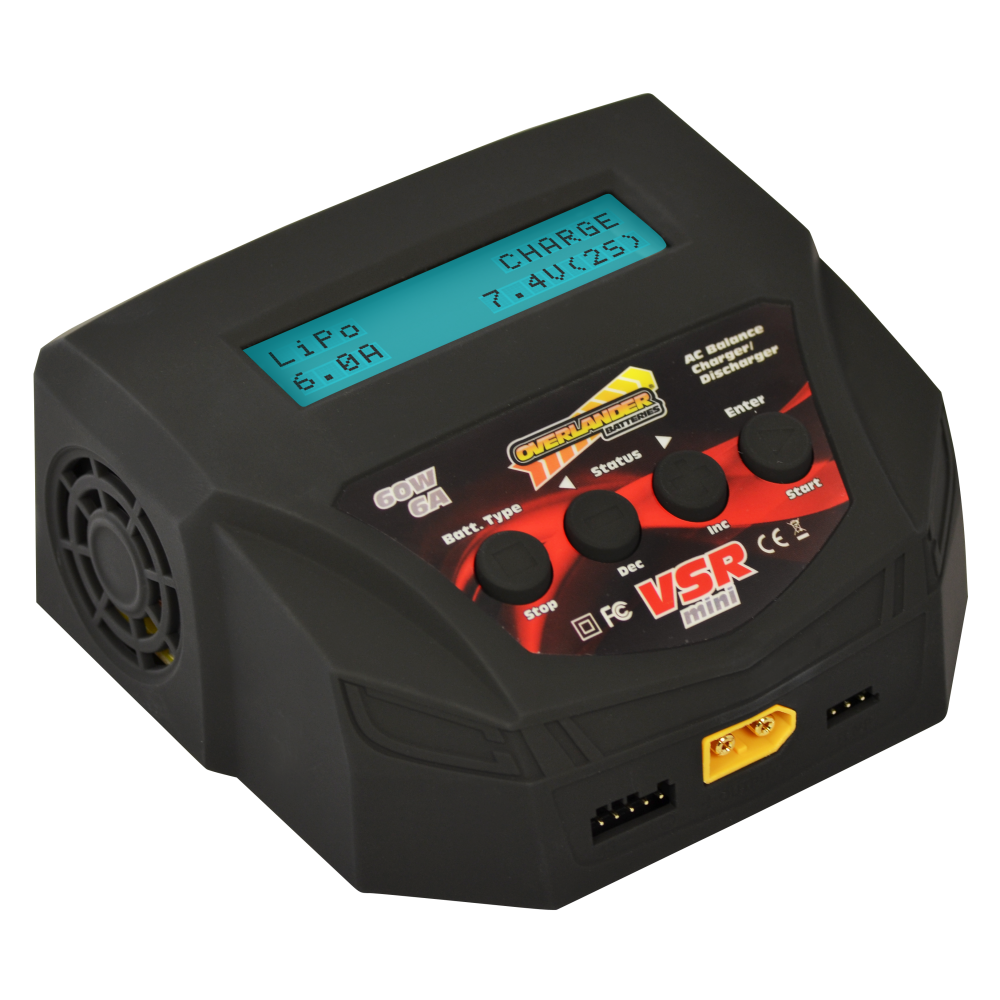

A high performance 60W/6A battery charger with charging, discharging, balancing, storage and fast charge facilities.
⚠ This is a high powered charger suitable for charging 2-4 cell LiPo batteries such as these Overlander ones (and some other battery chemistries as detailed below). It shouldn't be used to charge single cell batteries.
Features
Lithium Balancing - The VSRmini monitors each individual lithium cell within your battery pack to guarantee equal charge and voltage between all the cells. This ensures the lifetime and safety of your batteries are always kept to the maximum. The built-in balancing port makes connection easy, and the pre-cut balance slots make it impossible for LiPo packs to be connected incorrectly. The in-bult internal resistance monitor will also help maintain the health of your packs.
Maximum Safety - This charger is designed with multiple built-in safety features such as; capacity limit, temperature limit, charge time limit, and an input capacity and voltage check. This charger has everything in place to guarantee maximum safety.
XT60 Input - The VSRmini also features an XT60 input, meaning additional charge leads are not required for batteries fitted with the popular XT60 connector. An XT60 to Deans conversion lead is also included in this set for use with batteries fitted with a Deans type connector.
Specifications
| Input | AC |
| Charge Power | 60W |
| Discharge Power | 10W |
| Charge Current | 0.1 - 6A |
| Discharge Current | 0.1 - 2A |
| Compatible Chemistries | NiMH/NiCd, LiPo, LiIon, LiFe, LiHV, PB |
| Lithium Cell Count | 2 - 4S |
| NiMH / NiCd Cell Count | 6 - 8S |
| PB Cell Count | 6 -12V |
Includes
- VSRmini Charger
- XT60 to Deans Conversion Lead
- UK Power Lead (AC)
- Instruction Manual
Charging Process
Charging with the VSRmini is extremely easy! Within a few simple steps the charger is ready to do all the hard work for you. With the charger display visible you can easily see the status of the charge, monitor each individual cell reading and the amount of capacity that has been put into your battery pack. It will also show you how long the charge has been operating for. All charge functions automatically cut-off once the process is complete, minimising the risk of human error.
LiPo:
NiMH:
