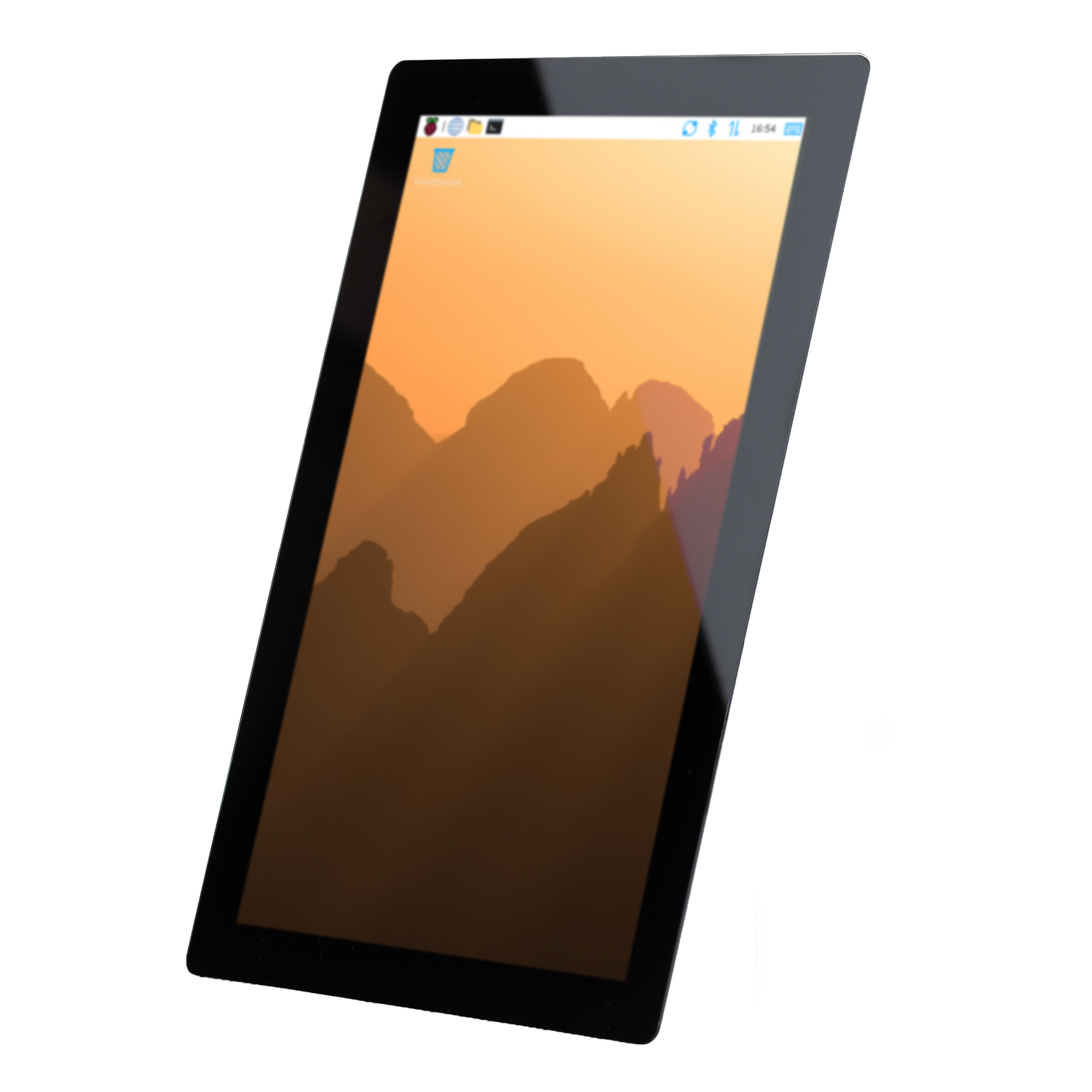

A large 10.1" (1200 x 1920 pixel) multi-touch display for Raspberry Pi 5, ideal for interactive projects like tablets, entertainment systems and information dashboards.
On the 10" display, Raspberry Pi OS provides built-in touchscreen drivers with support for ten-finger touch and an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse.
Only two connections are required to connect the display to your Raspberry Pi: a power cable for the GPIO header and a ribbon cable for the DSI port. The 10-inch variant is supplied with a power cable, a mini-mini ribbon cable, and eight M2.5 mounting screws.
This display is compatible with Raspberry Pi 5 and Compute Modules only. It won't work with Raspberry Pi 1-4 or the Raspberry Pi Zero series.
Contents
- Touch display
- Power cable
- Mini-mini ribbon cable (for use with Raspberry Pi 5)
- M2.5 screws to attach your Raspberry Pi to back of the display
Raspberry Pi 5 is not included (but you can buy one here)
Note Raspberry Pi Compute Modules do not include a physical DSI port or GPIO header. To connect the display, pair them with a Raspberry Pi Compute Module IO Board or another compatible carrier board.
Features
- Display size (diagonal): 10.1 inches
- Resolution: 1200 x 1920 pixels (portrait-native)
- 85-degree viewing angle
- Display format: 24-bit RGB, 1200 x 1920 pixels
- Display active area: 135.4mm x 216.6mm
- Unit size: 161.8 mm × 247.3 mm
- Touch panel: True multi-touch capacitive panel, supporting ten-finger touch
- Compatible with Raspberry Pi 5 and Compute Modules only.
Getting Started
Note that you will need the latest Raspberry Pi OS and bootloader for the screen to be autodetected. First, make sure your Pi OS is up to date by opening up a terminal (Ctrl-Alt-T) and running:
sudo apt update && sudo apt full-upgrade
Then run the following to update your Pi 5's bootloader:
sudo rpi-eeprom-update -a
